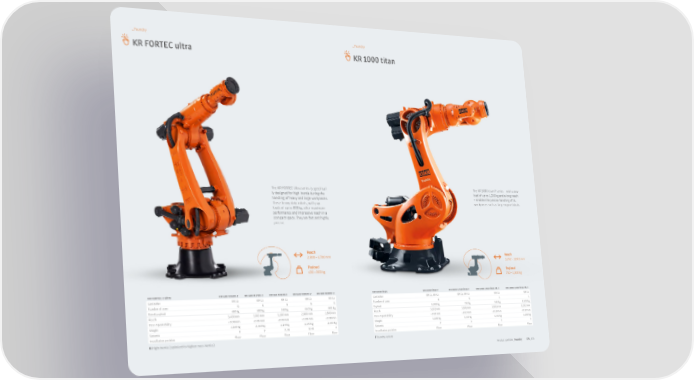

�Foundry �Foundry KR FORTEC ultra KR 1000 titan The KR FORTEC Ultra series is specifical- The KR 1000 titan F series – with a pay- ly designed for high inertia during the load of up to 1,300 kg and a long reach handling of heavy and large workpieces. – enables the precise handling of XL These heavy-duty robots, with pay- workpieces such as large engine blocks. loads of up to 800 kg, o昀昀er maximum performance and impressive reach in a compact space. They are fast and highly precise. Reach 2,800 – 3,700 mm Reach 3,202 – 3,601 mm Payload 480 – 800 kg Payload 750 – 1,300 kg KR FORTEC-2 ultra KR 480 R3400-2 KR 480 R3700-2 KR 560 R3100-2 KR 640 R2800-2 KR 800 R2800-2 KR 1000 titan KR 1000 titan F KR 1000 L750 titan F KR 1000 L950 titan PA-F KR 1000 1300 titan PA-F Controller KR C5 KR C5 KR C5 KR C5 KR C5 Controller KR C5, KR C4 KR C5, KR C4 KR C4 KR C4 Number of axes 6 6 6 6 6 Number of axes 6 6 4 4 Rated payload 480 kg 480 kg 560 kg 640 kg 800 kg Payload 1,000 kg 750 kg 950 kg 1,300 kg Reach 3,400 mm 3,700 mm 3,100 mm 2,800 mm 2,800 mm Reach 3,202 mm 3,601 mm 3,601 mm 3,202 mm Pose repeatability ±0.08 mm ±0.08 mm ±0.08 mm ±0.08 mm ±0.08 mm Pose repeatability ±0.10 mm ±0.10 mm ±0.10 mm ±0.10 mm Weight 2,140 kg 2,460 kg 2,170 kg 2,170 kg 2,400 kg Weight 4,690 kg 4,740 kg 4,740 kg 4,690 kg Variants F F F, HI F, HI F Variants F F F F Installation position Floor Floor Floor Floor Floor Installation position Floor Floor Floor Floor HI Hight Inertia (optimized for highest mass inertias) F Foundry variant Product portfolio_Foundry 074_075
