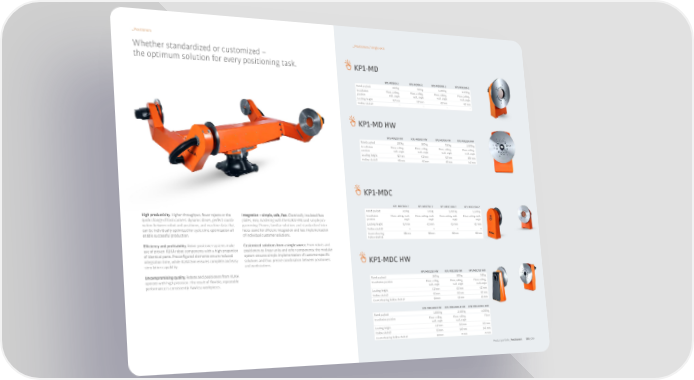

�Positioners �Positioners / single-axis Whether standardized or customized – the optimum solution for every positioning task. KP1-MD KP1-MD500-2 KP1-MD750-2 KP1-MD1000-2 KP1-MD1500-2 Rated payload 500 kg 750 kg 1,000 kg 1,500 kg Installation Floor, ceiling, Floor, ceiling, Floor, ceiling, Floor, ceiling, position wall, angle wall, angle wall, angle wall, angle Loading height 417 mm 417 mm 417 mm 417 mm Hollow shaft Ø – – – – KP1-MD HW KP1-MD250 HW KP1-MD500 HW KP1-MD750 HW KP1-MD2500 HW Rated payload 250 kg 500 kg 750 kg 2.500 kg Installation Floor, ceiling, Floor, ceiling, Floor, ceiling, Floor, ceiling, position wall, angle wall, angle wall, angle wall, angle Loading height 417 mm 417 mm 417 mm 505 mm Hollow shaft Ø 60 mm 60 mm 60 mm 140 mm KP1-MDC KP1-MDC500-2 KP1-MDC750-2 KP1-MDC1000-2 KP1-MDC1500-2 Rated payload 500 kg 750 kg 1,000 kg 1,500 kg High productivity. Higher throughput, fewer rejects or the Integration – simple, safe, fast. Electrically insulated face Installation Floor, ceiling, wall, Floor, ceiling, wall, Floor, ceiling, wall, Floor, ceiling, wall, quick change of tool carriers: dynamic drives, perfect coordi- plates, easy mastering with the 阀阀 EMD and simple pro- position angle angle angle angle nation between robot and positioner, and machine data that gramming: Proven, familiar solutions and standardized inter- Loading height 417 mm 417 mm 417 mm 417 mm can be individually optimized for cycle time optimization all faces stand for e昀昀icient integration and fast implementation Hollow shaft Ø – – – – enable successful production. of individual customer solutions. Counterbearing 68 mm 68 mm 68 mm 68 mm hollow shaft Ø E昀昀iciency and profitability. Robot positioner systems make Customized solutions from a single source. From robots and use of proven 阀阀 robot components with a high proportion positioners to linear units and other components: the modular of identical parts. Preconfigured elements ensure reduced system ensures simple implementation of customer-specific integration time, while 阀阀.Sim ensures complete and easy solutions and thus precise coordination between positioners KP1-MDC HW simulation capability. and workstations. Uncompromising quality. Robots and positioners from 阀阀 KP1-MDC250 HW KP1-MDC500 HW KP1-MDC750 HW operate with high precision. The result of flexible, repeatable Rated payload 250 kg 500 kg 750 kg performance is consistently flawless workpieces. Installation position Floor, ceiling, Floor, ceiling, Floor, ceiling, wall, angle wall, angle wall, angle Loading height 417 mm 417 mm 417 mm Hollow shaft Ø 60 mm 60 mm 60 mm Counterbearing hollow shaft Ø 68 mm 68 mm 68 mm KP1-MDC1000 HW KP1-MDC2500-2 HW KP1-MDC4000-2 HW Rated payload 1,000 kg 2,500 kg 4,000 kg Installation position Floor, ceiling, Floor, ceiling, Floor wall, angle wall, angle Loading height 417 mm 505 mm 505 mm Hollow shaft Ø 60 mm 140 mm 140 mm Counterbearing hollow shaft Ø 68 mm 70 mm 70 mm Product portfolio_Postitioners 088_089
