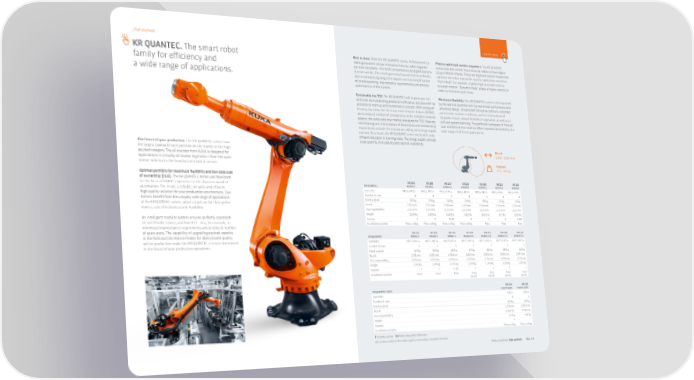

_High payloads click for more KR QUANTEC. The smart robot Best in class. With the KR QUANTEC series, 阀阀 presents a Process-optimized motion sequences. The KR QUANTEC robot generation whose innovative features taken together series were the world’s first industrial robots to have digital family for e昀昀iciency and set new standards – for both conventional and digitalized pro- plug-in Motion Modes. These are digitized motion modes that duction worlds. The result goes way beyond technical details, optimize the robot motion for specific application scenarios. a wide range of applications. also encompassing long-term aspects such as simplification “Path Mode”, for example, enables high-precision continu- of commissioning, maintenance requirements and process ous-path motion. “Dynamic Mode” allows a higher velocity in optimization of the system. order to minimize cycle times. Sustainably low TCO. The KR QUANTEC will impress you not Maximum flexibility. The KR QUANTEC series is distinguished only with its outstanding production e昀昀iciency, but also with its by the optimal portfolio with its maximized performance and economical start-up and maintenance concept. With energy ef- advanced design. Streamlined disruptive contours, extended ficiency, top values for the mean time between failures (MTBF) permissible ambient conditions and an extremely small and a reduced number of components in the complete modular footprint ensure utmost flexibility in operation, as well as in system, the series sets new market standards for TCO. Features cell and system planning. The perfected workspace in front of, contributing to a minimization of downtimes and maintenance over and behind the machine o昀昀ers improved accessibility in a requirements include the innovative cabling and energy supply wide range of di昀昀erent applications. concept. As a result, the KR QUANTEC series excels with a sig- nificant reduction in running costs. The energy supply concept is set apart by its durability and optimal availability. The future of your production. The KR QUANTEC robots have Reach the largest payload/reach portfolio on the market in the high 1,573 – 3,904 mm payload category. The all-rounder from 阀阀 is designed for applications in virtually all market segments – from the auto- Payload motive industry to the foundry and medical sectors. 120 – 300 kg Optimal portfolio for maximum flexibility and low total cost of ownership (TCO). The KR QUANTEC series was developed KR 300 KR 250 KR 240 KR 210 KR 180 KR 210 KR 150 on the basis of 阀阀’s experience in the dynamic world of KR QUANTEC R2700-2 R2700-2 R2900-2 R3100-2 R2900-2 R2700-2 R3100-2 automation. The result: a reliable, versatile and e昀昀icient Controller KR C5, KR C4 KR C5, KR C4 KR C5, KR C4 KR C5, KR C4 KR C5, KR C4 KR C5, KR C4 KR C5, KR C4 high-quality solution for your production environment. Cus- Number of axes 6 6 6 6 6 6 6 tomers benefit from the uniquely wide range of applications Rated payload 300 kg 250 kg 240 kg 210 kg 180 kg 210 kg 150 kg of the KR QUANTEC robots, which stand out for their perfor- Reach 2,701 mm 2,701 mm 2,900 mm 3,100 mm 2,900 mm 2,701 mm 3,100 mm mance, cost-e昀昀ectiveness and flexibility. Pose repeatability ±0.05 mm ±0.05 mm ±0.05 mm ±0.05 mm ±0.05 mm ±0.05 mm ±0.05 mm Weight 1,101 kg 1,101 kg 1,120 kg 1,134 kg 1,105 kg 1,077 kg 1,105 kg An intelligent modular system ensures perfectly coordinat- Variants F F F, HO F F F F, HO ed and flexible robots, and low TCO – due, for example, to Installation position Floor, ceiling Floor, ceiling Floor, ceiling Floor, ceiling Floor Floor Floor minimized maintenance requirements and a reduced number of spare parts. The capability of upgrading payload capacity KR 150 KR 120 KR 120 KR 270 KR 210 KR 180 KR 120 in the field and the Motion Modes for ideal process quality KR QUANTEC R2700-2 R3100-2 R2700-2 R3100-2 K R3300-2 K R3500-2 K R3900-2 K within production make the KR QUANTEC a secure investment Controller KR C5, KR C4 KR C5, KR C4 KR C5, KR C4 KR C5, KR C4 KR C5, KR C4 KR C5, KR C4 KR C5, KR C4 in the future of your production operations. Number of axes 6 6 6 6 6 6 6 Rated payload 150 kg 120 kg 120 kg 270 kg 210 kg 180 kg 120 kg Reach 2,701 mm 3,100 mm 2,701 mm 3,105 mm 3,305 mm 3,505 mm 3,904 mm Pose repeatability ±0.05 mm ±0.05 mm ±0.05 mm ±0.05 mm ±0.05 mm ±0.05 mm ±0.05 mm Weight 1,072 kg 1,105 kg 1,069 kg 1,260 kg 1,266 kg 1,256 kg 1,280 kg Variants F F F, HO F F F – Installation position Floor Floor Floor Floor Floor Floor Floor (shelf) (shelf) (shelf) (shelf) KR 160 KR 120 KR QUANTEC nano R1570 nano R1800 nano Controller KR C4 KR C4 Number of axes 6 6 Rated payload 160 kg 120 kg Reach 1,573 mm 1,803 mm Pose repeatability ±0.06 mm ±0.06 mm Weight 677 kg 684 kg Variants – – Installation position Floor, ceiling Floor, ceiling F Foundry variant HO Food compatible lubricants The technical data in the tables applies exclusively to standard versions. Product portfolio_High payloads 042_043
