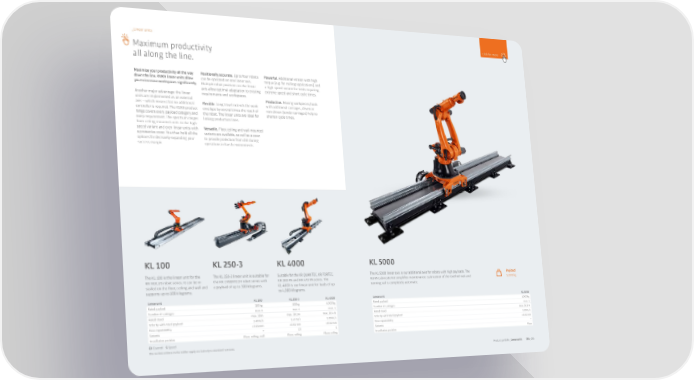

_Linear units click for more Maximum productivity all along the line. Maximize your productivity all the way Positionally accurate. Up to four robots Powerful. Additional version with high down the line. 阀阀 linear units allow can be operated on one linear axis. torque (e.g. for milling applications) and you to increase workspaces significantly. Multiple robot positions on the linear a high-speed variant for tasks requiring axis allow optimal adaptation to existing extreme speed and short cycle times. Another major advantage: the linear requirements and workspaces. units are implemented as an external Productive. Moving workpieces/tools axis – which means that no additional Flexible. Long travel extends the work with additional carriages, driven or controller is required. The 阀阀 product envelope by several times the reach of non-driven (tender carriages) help to range covers every payload category and the robot. The linear units are ideal for shorten cycle times. every requirement. The spectrum ranges linking production lines. from ceiling-mounted units to the high- speed variant and even linear units with Versatile. Floor, ceiling and wall-mounted a protective cover. You thus hold all the variants are available, as well as a cover options for decisively expanding your to provide protection from dirt during success margin. operations in harsh environments. KL 100 KL 250-3 KL 4000 KL 5000 The KL 100 is the linear unit for the The KL 250-3 linear unit is suitable for Suitable for the KR QUANTEC, KR FORTEC, The KL 5000 linear axis is our additional axis for robots with high payloads. The Payload KR AGILUS robot series. It can be in- the KR CYBERTECH robot series with KR 300 PA and KR 470 PA series. The 阀阀 Lubricate Kit simplifies maintenance. Lubrication of the toothed rack and 5,000 kg stalled on the floor, ceiling and wall and a payload of up to 300 kilograms. KL 4000 is our linear unit for loads of up running rail is completely automatic. supports up to 100 kilograms. to 4,000 kilograms. Linear unit KL 100 KL 250-3 KL 4000 Linear unit KL 5000 Rated payload 100 kg 300 kg 4,000 kg Rated payload 5,000 kg Number of carriages max. 4 max. 4 max. 4 Number of carriages max. 4 Rated travel max. 30 m max. 30.1 m max. 30.4 m Rated travel max. 30.3 m Velocity with rated payload 2.48 m/s 1.47 m/s 1.89 m/s Velocity with rated payload 1.89 m/s Pose repeatability ±0.02 mm ±0.02 mm ±0.02 mm Pose repeatability ±0.02 mm Variants – CV S Variants – Installation position Floor, ceiling, wall Floor, ceiling Floor, ceiling Installation position Floor CV Covered S Speed The technical data in the tables apply exclusively to standard versions. Product portfolio_Linear units 084_085
