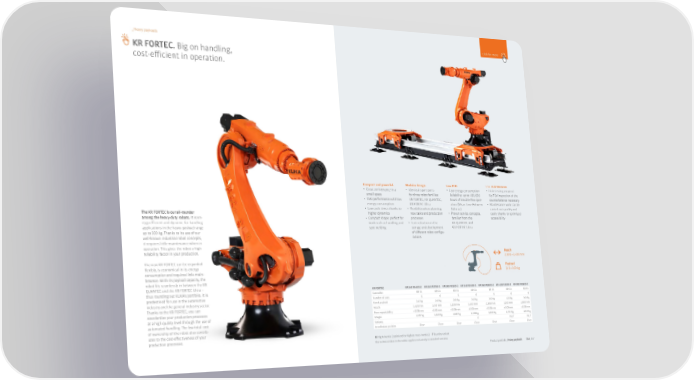

_Heavy payloads click for more KR FORTEC. Big on handling, cost-e昀昀icient in operation. Compact and powerful. Modular design. Low TCO. Low maintenance. • Great performance in a • Identical spare parts • Low energy consumption • Little testing required: small space for three robot families: Reliability: up to 400,000 No TÜV inspection of the • Fast performance with low KR FORTEC, KR QUANTEC, hours of trouble-free oper- counterbalance necessary energy consumption KR FORTEC Ultra ation (Mean Time Between • Maintenance work can be • Low cycle times thanks to • Flexibility when planning Failures) carried out quickly and The KR FORTEC is our all-rounder higher dynamics new tasks and production • Proven service concepts, easily thanks to optimized among the heavy-duty robots. It is en- • Compact shape: perfect for processes familiar from the accessibility ergy-e昀昀icient and dynamic for handling work such as handling and • Cost reduction in the KR QUANTEC and applications in the heavy payload range spot welding storage and development KR FORTEC Ultra up to 500 kg. Thanks to its use of our of di昀昀erent robot configu- well-known industrial robot concepts, rations it requires little maintenance when in operation. This gives the robot a high reliability factor in your production. Reach 2,800 –3,400 mm The new KR FORTEC can be expanded flexibly, is economical in its energy Payload consumption and requires little main- 240 – 500 kg tenance. With its payload capacity, the robot fits seamlessly in between the KR QUANTEC and the KR FORTEC Ultra – KR FORTEC KR 240 R3400-2 KR 240 R3750-2 KR 280 R3100-2 KR 340 R3400-2 KR 360 R2800-2 KR 420 R3100-2 KR 500 R2800-2 thus rounding out 阀阀’s portfolio. It is Controller KR C5 KR C5 KR C5 KR C5 KR C5 KR C5 KR C5 predestined for use in the automotive Number of axes 6 6 6 6 6 6 6 industry and the general industry sector. Rated payload 240 kg 240 kg 280 kg 340 kg 360 kg 420 kg 500 kg Thanks to the KR FORTEC, you can Reach 3,400 mm 3,750 mm 3,100 mm 3,400 mm 2,800 mm 3,100 mm 2,800 mm standardize your production processes Pose repeatability ±0.08 mm ±0.08 mm ±0.08 mm ±0.08 mm ±0.08 mm ±0.08 mm ±0.08 mm at a high quality level through the use of Weight 1,597 kg 1,620 kg 1,687 kg 1,728 kg 1,660 kg 1,704 kg 1,671 kg automated handling. The low total cost Variants F HI, F HI, F of ownership of the robot also contrib- Installation position Floor Floor Floor Floor Floor Floor Floor utes to the cost-e昀昀ectiveness of your production processes. HI Hight Inertia (optimized for highest mass inertias) F Foundry variant The technical data in the tables applies exclusively to standard versions. Product portfolio_Heavy payloads 046_047
