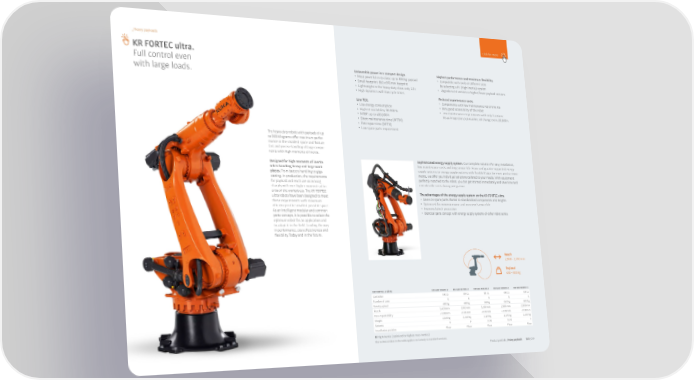

_Heavy payloads click for more KR FORTEC ultra. Full control even Unbeatable power in a compact design. Highest performance and maximum flexibility. with large loads. • Most powerful in its class: up to 800 kg payload • Compatible with tools of di昀昀erent sizes • Small footprint: 950 × 970 mm footprint by selecting a HI (High Inertia) version • Lightweight in the heavy-duty class: only 2.2 t • Upgrade to HI version or higher/lower payload versions • High dynamics with low cycle times Reduced maintenance costs. Low TCO. • Components with low maintenance requirements • Low energy consumption • Very good accessibility of the robot • Highest availability: 99.998 % • Low maintenance requirements with only 3 actions: • MTBF: up to 400,000 h Visual inspection, lubrication, oil change every 20,000 h. • Short maintenance time (MTTM) • Fast repair time (MTTR) • Low spare parts requirement The heavy-duty robots with payloads of up to 800 kilograms o昀昀er maximum perfor- mance in the smallest space and feature fast and precise handling of large compo- nents with high moments of inertia. Designed for high moments of inertia Sophisticated energy supply system. Our complete solution for easy installation, when handling heavy and large work- low maintenance costs and long service life. From configurator-supported energy pieces. From battery handling to giga- supply systems to energy supply systems with flexible K-pipe for more pr ecise move- casting. In production, the requirements ments, we o昀昀er you individual solutions tailored to your needs. With equipment for payload and reach are increasing perfectly matched to the robot, you can get started immediately and save time and sharply with ever higher moments of in- considerable costs during integration. ertia of the workpieces. The KR FORTEC The advantages of the energy supply system on the KR FORTEC ultra. ultra robots have been designed to meet • Saves on spare parts thanks to standardized components and lengths these requirements with maximum • Optimized for minimum wear and increased service life e昀昀iciency in the smallest possible space. • Improved pinch protection As an intelligent modular and common • Identical parts concept with energy supply systems of other robot series parts concept, it is possible to select the optimum robot for an application and to adapt it in the field. Leading the way in performance, cost-e昀昀ectiveness and flexibility. Today and in the future. Reach 2,800 – 3,700 mm Payload 480 – 800 kg KR FORTEC-2 ultra KR 480 R3400-2 KR 480 R3700-2 KR 560 R3100-2 KR 640 R2800-2 KR 800 R2800-2 Controller KR C5 KR C5 KR C5 KR C5 KR C5 Number of axes 6 6 6 6 6 Rated payload 480 kg 480 kg 560 kg 640 kg 800 kg Reach 3,400 mm 3,700 mm 3,100 mm 2,800 mm 2,800 mm Pose repeatability ±0.08 mm ±0.08 mm ±0.08 mm ±0.08 mm ±0.08 mm Weight 2,140 kg 2,460 kg 2,170 kg 2,170 kg 2,400 kg Variants F F F, HI F, HI F Installation position Floor Floor Floor Floor Floor HI Hight Inertia (optimized for highest mass inertias) The technical data in the table applies exclusively to standard versions. Product portfolio_Heavy payloads 048_049
