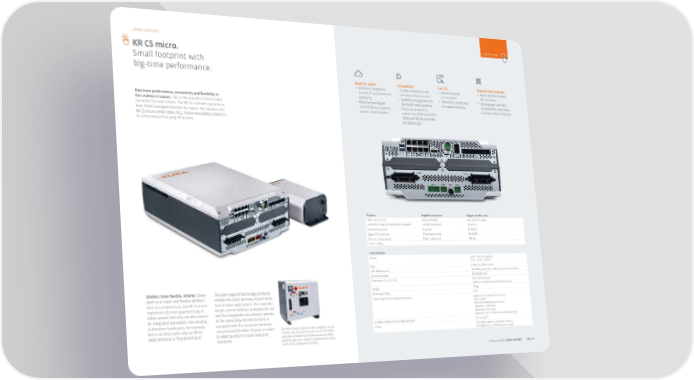

�Robot controller click for more KR C5 micro. Small footprint with big-time performance. Ready for digital Compatibility Low TCO Ready for use worldwide • Seamless integration • Simple integration into • Reduced energy • Meets globally relevant into OT, IT and cloud envi- existing infrastructures consumption ISO standards ronments • Seamless integration into • Minimized complexity • 25 languages available, Maximum performance, connectivity and flexibility in • Ethernet and digital the 阀阀 robot portfolio • Increased reliability including the most wide- the smallest of spaces. This is the new KR C5 micro robot I/O interfaces, supports • Easy and intuitive to ly-spoken Asian languages controller for small robots. The KR C5 controller generation various cloud systems operate via 阀阀 smartPAD from 阀阀 is programmed for the future. For instance, the (KSS) and 阀阀 smartPAD KR C5 micro unites robot, PLC, motion and safety control in pro (iiQKA.OS) an ultra-compact housing of 16 liters. Features Supplied accessories Supported robot series Drive axes (6 axes) 阀阀 smartPAD KR CYBERTECH nano Embedded computer with safety controller External battery box KR AGILUS Ethernet interfaces Plug pack KR DELTA Digital I/O interfaces Mounting brackets KR SCARA Discrete safety signals Power supply lead LBR iisy Active cooling Technical data Infeed 200 V – 240 V AC, 1-phase 50 Hz – 60 Hz, 2-phase Axes 6 axes / 3 × 12 A + 3 × 5 A CPU ARChitecture Intel X86 (main CPU) + ARM (for safety functions) Internal memory 60 GB (SSD M.2) Dimensions (L × W × H) 392 × 300 × 134 mm (without attachments and without bases) Smaller, more flexible, smarter. Devel- The wide range of technology products Weight 9.8 kg oped as an open and flexible platform enables the quick and easy implementa- Protection rating IP 20 with no compromises, the KR C5 micro tion of robot applications. The controller Wide range of line integration options Digital I/O: 16 inputs / 16 outputs represents the next quantum leap in meets current field bus standards for cell (pnp or npn) EtherCAT (阀阀 Extension Bus) robot control. Not only can the control- and line integration via software options. PROFINET + PROFIsafe ler integrated seamlessly into existing At the same time, the KR C5 micro is EthernetIP +CIP Safety automation landscapes, for example, equipped with the necessary hardware EtherCAT slave + FSoE (via external gateway) but it can also easily take on KR C4 resources and flexible I/O ports in order The KR C5 micro cabinet is the complete control Ambient temperature during operation 0 °C to +45 °C applications as a “functional twin”. to adapt quickly to future tasks and cabinet solution in protection class IP 54 for the Safety ISO 10218-1 Robots and robotic devices, operation of 阀阀 small robots and also o昀昀ers ISO 13849-1 Cat. 3 / Performance Level d standards. optional space for compact additional axis drives and further peripheral functions. Product portfolio_Robot controller 118_119
