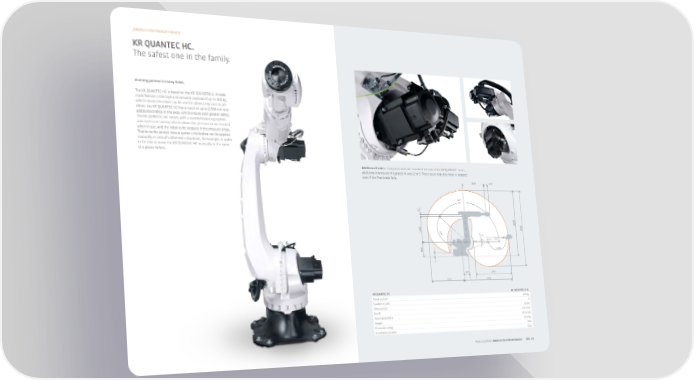

_Robots in the medical industry KR QUANTEC HC. The safest one in the family. A strong partner in many fields. The KR QUANTEC HC is based on the KR 300 R2700-2. A trade- mark feature is the high and versatile payload of up to 300 kg, which means the robot can be used in almost any area. In ad- dition, the KR QUANTEC HC has a reach of up to 2,700 mm and additional brakes in the axes, which ensure even greater safety. The KR QUANTEC HC comes with a counterbalancing system and a pressure sensor, which allows the pressure to be checked when in use, and the robot to be stopped if the pressure drops. Thanks to the person rescue system, the brakes can be applied manually in case of unforeseen situations, for example, in order to be able to move the KR QUANTEC HC manually in the event of a power failure. Additional brakes. Compared with the standard version of the KR QUANTEC series, additional brakes are integrated in axes 2 to 5. They ensure that the robot is stopped even if the first brake fails. 1220 240 -140° 115 3020 1150 -120° -5° 3501 645 +168° 330 2004 1776 2701 KR QUANTEC HC KR 300 R2700-2 HC Rated payload 300 kg Number of axes 6 Wrist variant In-line Reach 2,701 mm Pose repeatability ±0.05 mm Weight 1,150 kg Protection rating IP 65 Installation position Floor Product portfolio_Robots in the medical industry 080_081
